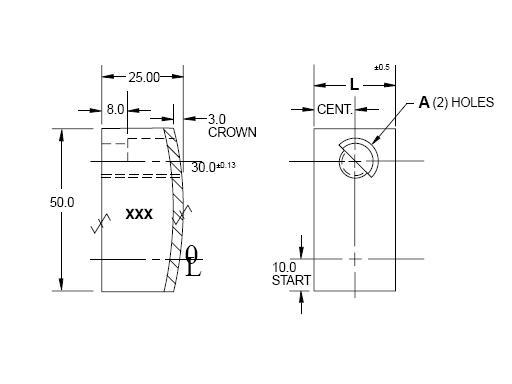

| Part Number | L mm | A |
|---|---|---|
| ASC018 | 20 | Drill and C'Bore for M8 SHCS |
| ASC019 | 20 | M8 x 1.5 |
| ASC020 | 25 | Drill and C'Bore for M10 SHCS |
| ASC021 | 25 | M10 x 1.5 |
| ASC060 | 60 | Drill and C'Bore for M10 SHCS |
| ASC061 | 60 | M10 x 1.5 |
| ASC090 | 90 | Drill and C'Bore for M10 SHCS |
| ASC091 | 90 | M10 x 1.5 |
|
