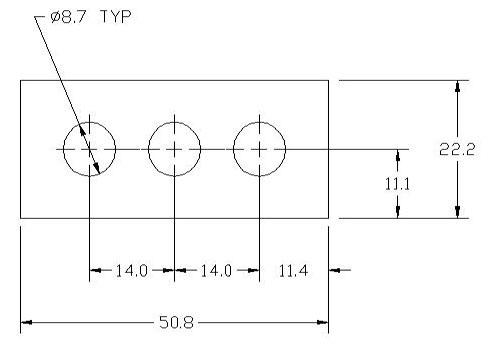

FSD 40776 Metric Thickness Spacers
 |
|---|
| Part Number | Thickness |
|---|---|
| FSD 40776-45 | 0.50mm |
| FSD 40776-47 | 1.00mm |
| FSD 40776-51 | 2.00mm |
| FSD 40776-52 | 2.25mm |
| FSD 40776-53 | 2.50mm |
| FSD 40776-54 | 2.75mm |
| FSD 40776-55 | 3.00mm |
| FSD 40776-56 | 3.25mm |
| FSD 40776-57 | 3.50mm |
| FSD 40776-58 | 3.75mm |
| FSD 40776-59 | 4.00mm |
| FSD 40776-60 | 4.25mm |
| FSD 40776-61 | 4.50mm |
| FSD 40776-62 | 4.75mm |
| FSD 40776-63 | 5.00mm |
| FSD 40776-64 | 5.25mm |
| FSD 40776-65 | 5.50mm |
| FSD 40776-66 | 5.75mm |
| FSD 40776-67 | 6.00mm |
|
