56ZF28686 Series Shims

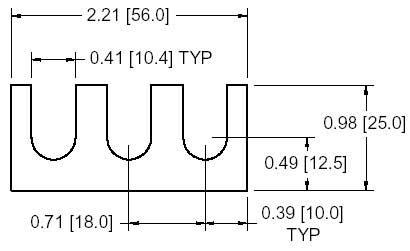

56ZF28686 Series Shim Drawing
View PDF Catalog Page

56ZF28686 Series Individual Shims

Part Number	Thickness	Douglas Part Number
56ZF28686-0	0.25mm	DSCH043-M025
56ZF28686-1	0.50mm	DSCH043-M050
56ZF28686-2	1.00mm	DSCH043-M100
56ZF28686-3	2.00mm	DSCH043-M200

56ZF28686 Series Shim Set Stackups

Set Number	Stackup	2.00mm	1.00mm	0.50mm	0.25mm
-56ZF28686	4.5mm Set	1	2	1	0
*56ZF28686	5.0mm Set	1	2	2	0
%56ZF28686	5.0mm Set	1	2	1	2
**56ZF28686	5.0mm Set	1	1	3	2
***56ZF28686	6.0mm Set	2	1	2	0
