DSCH003 Series Shims

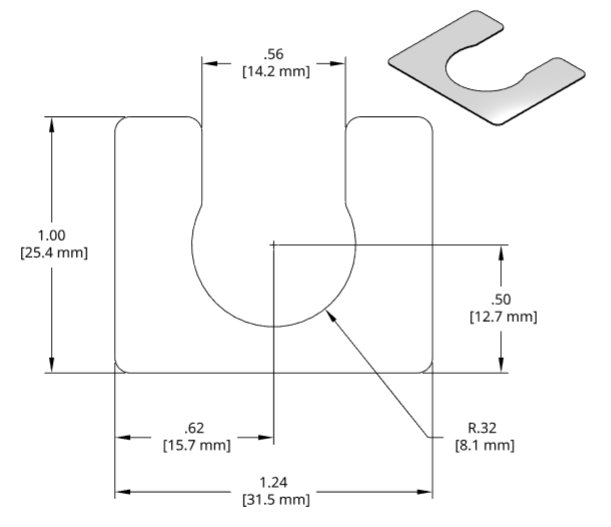

DSCH003 Series Shim Drawing
View PDF Catalog Page

DSCH003 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH003-M025 0.25mm FSD 34494-54
DSCH003-M050 0.50mm FSD 34494-53
DSCH003-M100 1.00mm FSD 34494-52
DSCH003-M200 2.00mm FSD 34494-51
DSCH003-E015 .015 inch FSD 14129-54
DSCH003-E032 .032 inch FSD 14129-52
DSCH003-E062 .062 inch FSD 14129-51

DSCH003 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH003-M454 4.5mm Set 1 2 1 0
DSCH003-M505 5.0mm Set 1 2 2 0
DSCH003-M506 5.0mm Set 1 2 1 2
DSCH003-M507 5.0mm Set 1 1 3 2
DSCH003-M605 6.0mm Set 2 1 2 0

DSCH003 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH003-E255 .250 inch Set 3 2
