DSCH005 Series Shims

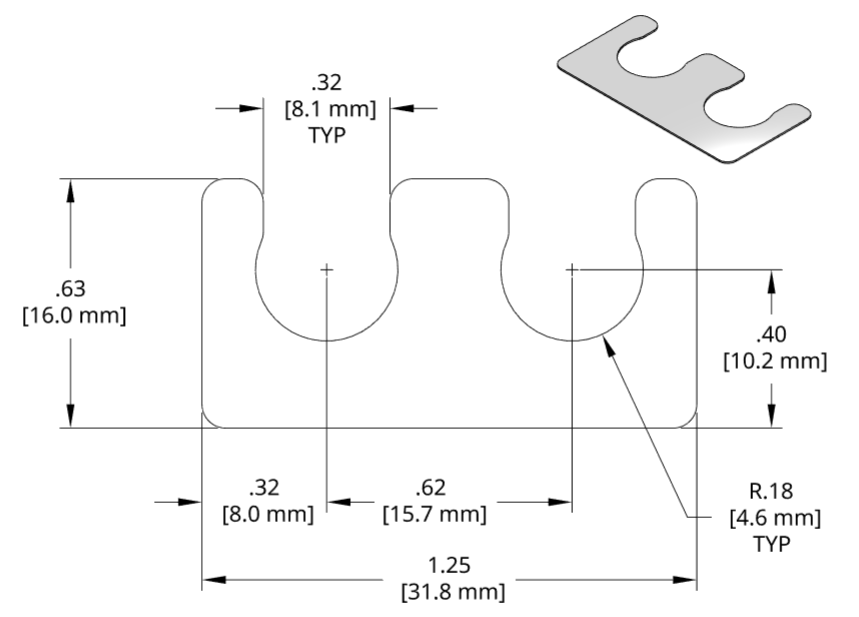

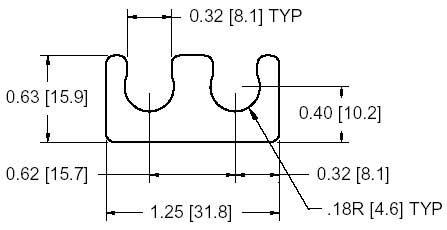

DSCH005 Series Shim Drawing
View PDF Catalog Page

DSCH005 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH005-M025 0.25mm FSD 34496-54
DSCH005-M050 0.50mm FSD 34496-53
DSCH005-M100 1.00mm FSD 34496-52
DSCH005-M200 2.00mm FSD 34496-51
DSCH005-E015 .015 inch FSD 14107-54
DSCH005-E032 .032 inch FSD 14107-52
DSCH005-E062 .062 inch FSD 14107-51

DSCH005 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH005-M454 4.5mm Set 1 2 1 0
DSCH005-M505 5.0mm Set 1 2 2 0
DSCH005-M506 5.0mm Set 1 2 1 2
DSCH005-M507 5.0mm Set 1 1 3 2
DSCH005-M605 6.0mm Set 2 1 2 0

DSCH005 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH005-E255 .250 inch Set 3 2
