DSCH006 Series Shims

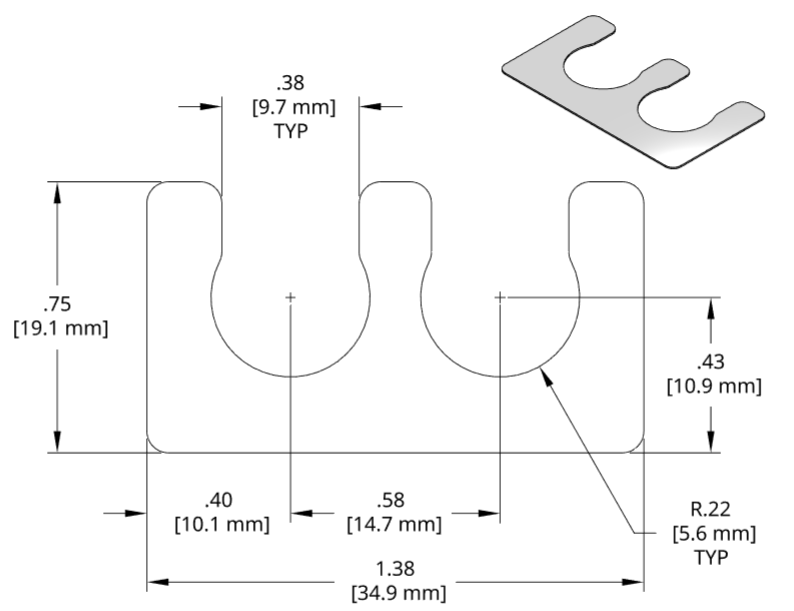

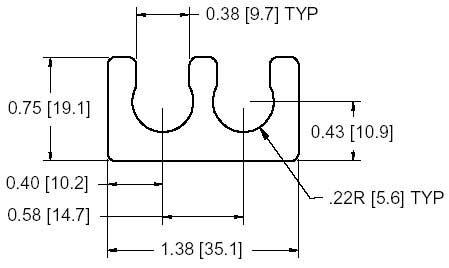

DSCH006 Series Shim Drawing
View PDF Catalog Page

DSCH006 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH006-M025 0.25mm FSD 34497-54
DSCH006-M050 0.50mm FSD 34497-53
DSCH006-M100 1.00mm FSD 34497-52
DSCH006-M200 2.00mm FSD 34497-51
DSCH006-E015 .015 inch FSD 14066-54
DSCH006-E032 .032 inch FSD 14066-52
DSCH006-E062 .062 inch FSD 14066-51

DSCH006 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH006-M454 4.5mm Set 1 2 1 0
DSCH006-M505 5.0mm Set 1 2 2 0
DSCH006-M506 5.0mm Set 1 2 1 2
DSCH006-M507 5.0mm Set 1 1 3 2
DSCH006-M605 6.0mm Set 2 1 2 0

DSCH006 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH006-E255 .250 inch Set 3 2
