DSCH013 Series Shims

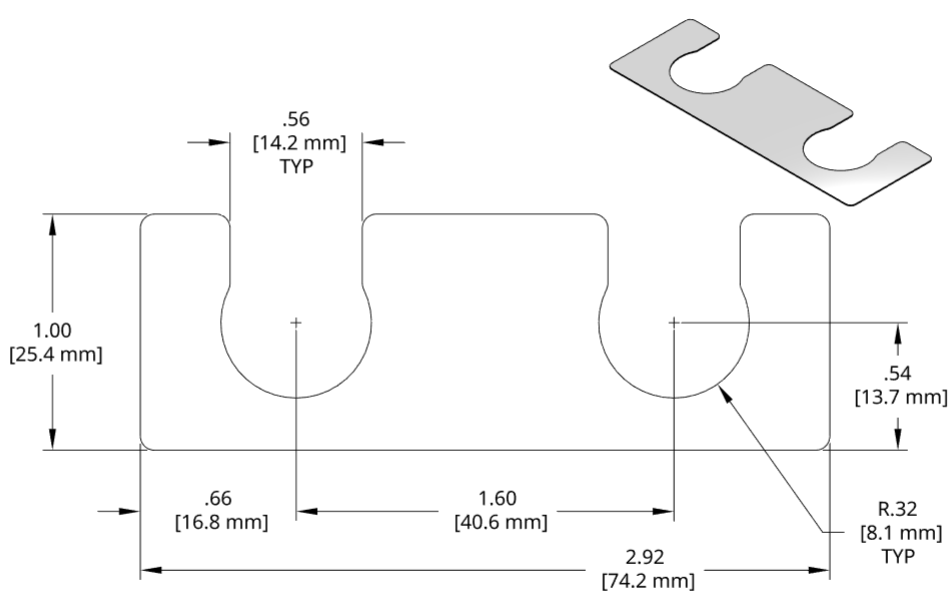

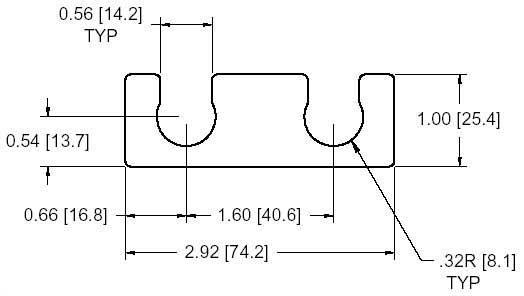

DSCH013 Series Shim Drawing
View PDF Catalog Page

DSCH013 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH013-M025 0.25mm FSD 34504-54
DSCH013-M050 0.50mm FSD 34504-53
DSCH013-M100 1.00mm FSD 34504-52
DSCH013-M200 2.00mm FSD 34504-51
DSCH013-E015 .015 inch FSD 14053-54
DSCH013-E032 .032 inch FSD 14053-52
DSCH013-E062 .062 inch FSD 14053-51

DSCH013 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH013-M454 4.5mm Set 1 2 1 0
DSCH013-M505 5.0mm Set 1 2 2 0
DSCH013-M506 5.0mm Set 1 2 1 2
DSCH013-M507 5.0mm Set 1 1 3 2
DSCH013-M605 6.0mm Set 2 1 2 0

DSCH013 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH013-E255 .250 inch Set 3 2
