DSCH017 Series Shims

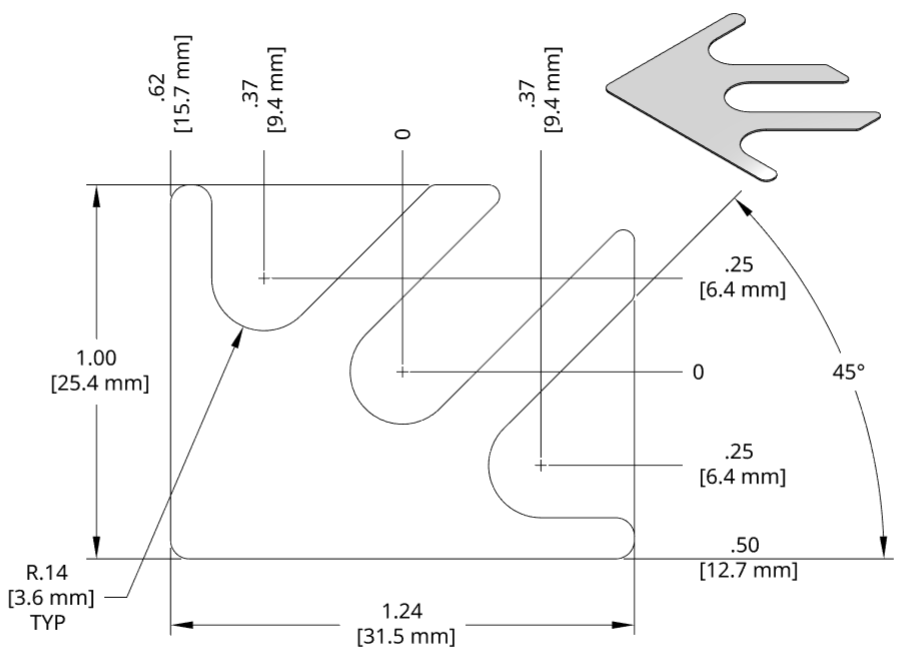

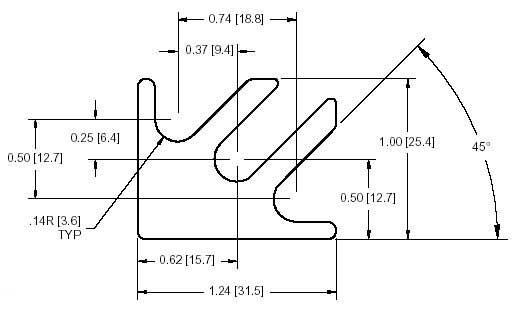

DSCH017 Series Shim Drawing
View PDF Catalog Page

DSCH017 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH017-M025 0.25mm FSD 34508-54
DSCH017-M050 0.50mm FSD 34508-53
DSCH017-M100 1.00mm FSD 34508-52
DSCH017-M200 2.00mm FSD 34508-51
DSCH017-E015 .015 inch FSD 14108-54
DSCH017-E032 .032 inch FSD 14108-52
DSCH017-E062 .062 inch FSD 14108-51

DSCH017 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH017-M454 4.5mm Set 1 2 1 0
DSCH017-M505 5.0mm Set 1 2 2 0
DSCH017-M506 5.0mm Set 1 2 1 2
DSCH017-M507 5.0mm Set 1 1 3 2
DSCH017-M605 6.0mm Set 2 1 2 0

DSCH017 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH017-E255 .250 inch Set 3 2
