DSCH022 Series Shims

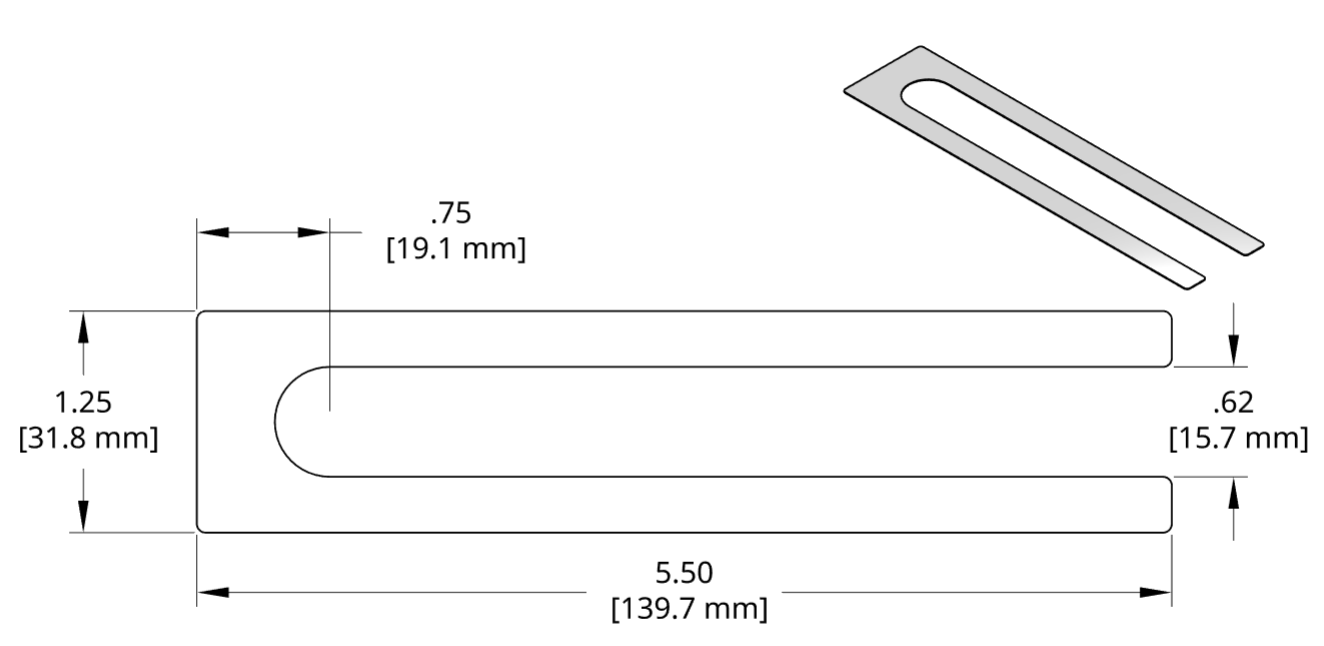

DSCH022 Series Shim Drawing
View PDF Catalog Page

DSCH022 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH022-M025 0.25mm FSD 39559-54
DSCH022-M050 0.50mm FSD 39559-53
DSCH022-M100 1.00mm FSD 39559-52
DSCH022-M200 2.00mm FSD 39559-51
DSCH022-E015 .015 inch FSD 39601-54
DSCH022-E032 .032 inch FSD 39601-52
DSCH022-E062 .062 inch FSD 39601-51

DSCH022 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH022-M454 4.5mm Set 1 2 1 0
DSCH022-M505 5.0mm Set 1 2 2 0
DSCH022-M506 5.0mm Set 1 2 1 2
DSCH022-M507 5.0mm Set 1 1 3 2
DSCH022-M605 6.0mm Set 2 1 2 0

DSCH022 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH022-E255 .250 inch Set 3 2
