DSCH023 Series Shims

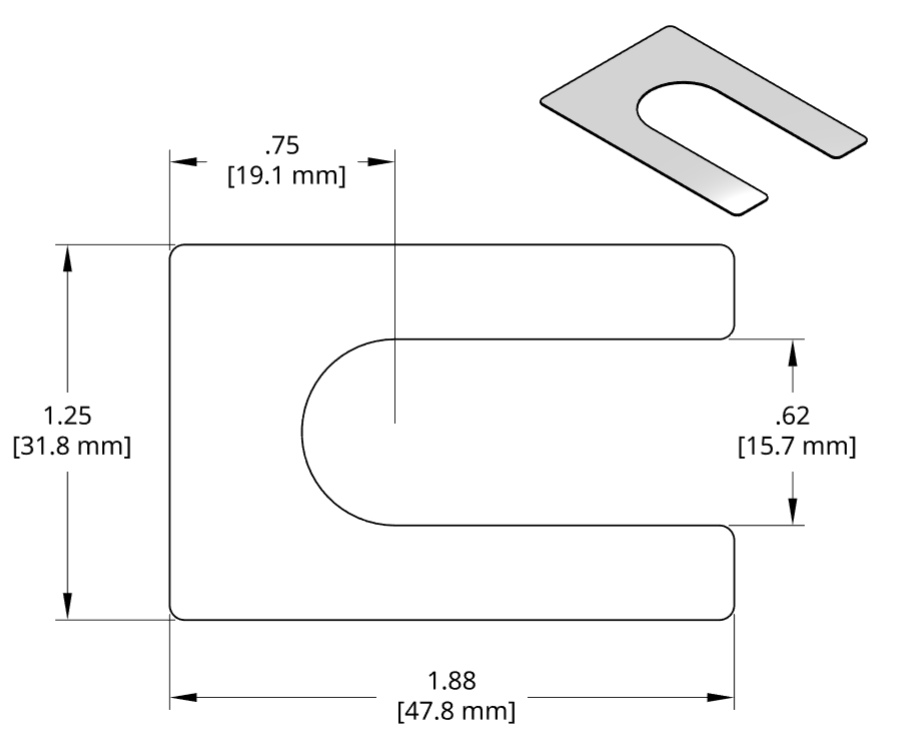

DSCH023 Series Shim Drawing
View PDF Catalog Page

DSCH023 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH023-M025 0.25mm DSC-625S-54
DSCH023-M050 0.50mm DSC-625S-53
DSCH023-M100 1.00mm DSC-625S-52
DSCH023-M200 2.00mm DSC-625S-51
DSCH023-E015 .015 inch 125187-54
DSCH023-E032 .032 inch 125187-52
DSCH023-E062 .062 inch 125187-51

DSCH023 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH023-M454 4.5mm Set 1 2 1 0
DSCH023-M505 5.0mm Set 1 2 2 0
DSCH023-M506 5.0mm Set 1 2 1 2
DSCH023-M507 5.0mm Set 1 1 3 2
DSCH023-M605 6.0mm Set 2 1 2 0

DSCH023 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH023-E255 .250 inch Set 3 2
