DSCH064 Series Shims

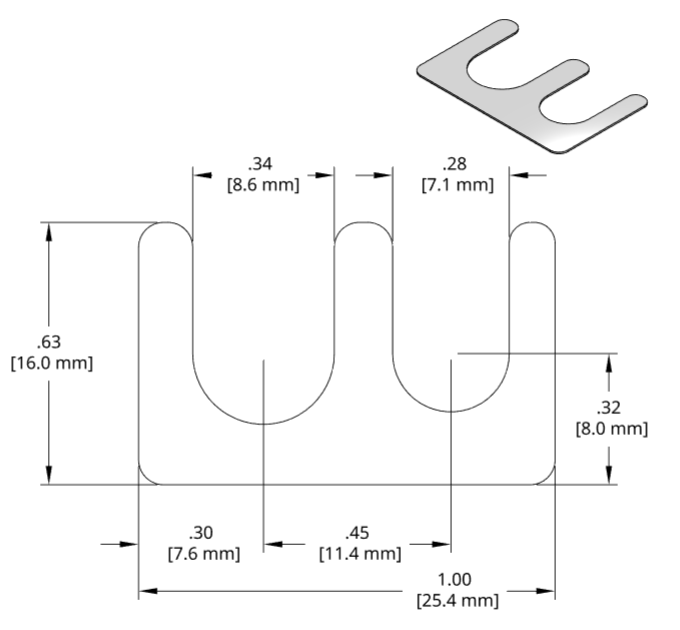

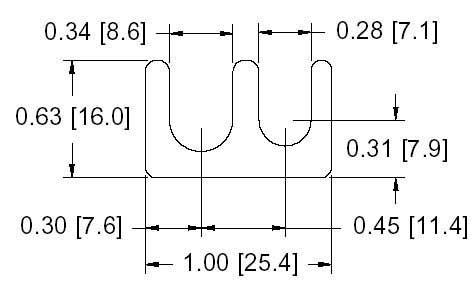

DSCH064 Series Shim Drawing
View PDF Catalog Page

DSCH064 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH064-M025 0.25mm M FS 15-BBBB
DSCH064-M050 0.50mm M FS 15-BBB
DSCH064-M100 1.00mm M FS 15-BB
DSCH064-M200 2.00mm M FS 15-B
DSCH064-E015 .015 inch FS 15-BBB
DSCH064-E032 .032 inch FS 15-BB
DSCH064-E062 .062 inch FS 15-B

DSCH064 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH064-M454 4.5mm Set 1 2 1 0
DSCH064-M505 5.0mm Set 1 2 2 0
DSCH064-M506 5.0mm Set 1 2 1 2
DSCH064-M507 5.0mm Set 1 1 3 2
DSCH064-M605 6.0mm Set 2 1 2 0

DSCH064 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH064-E255 .250 inch Set 3 2
