DSCH071 Series Shims

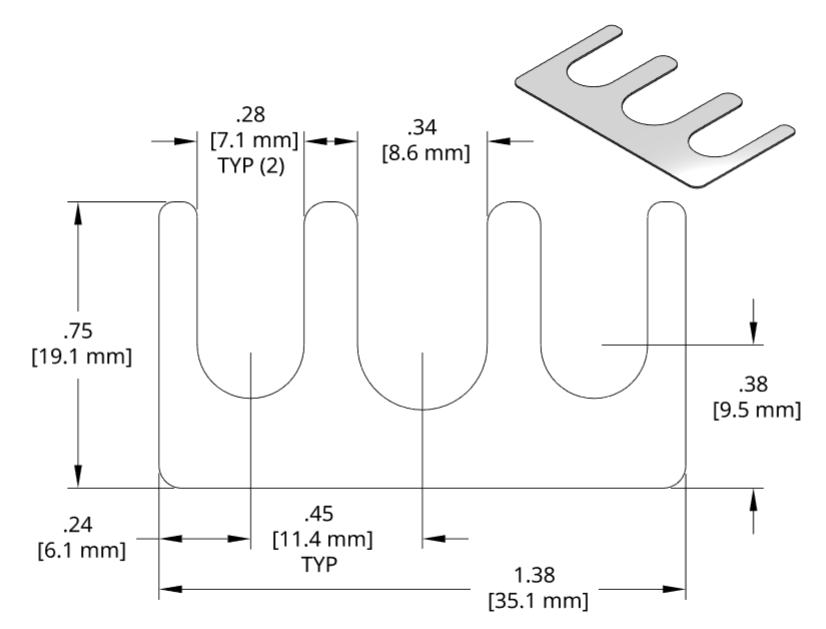

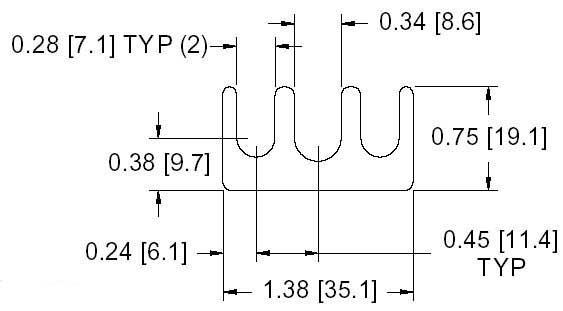

DSCH071 Series Shim Drawing
View PDF Catalog Page

DSCH071 Series Individual Shims

Part Number Thickness Legacy Part No's
DSCH071-M025 0.25mm M FS 15-JJJJ
DSCH071-M050 0.50mm M FS 15-JJJ
DSCH071-M100 1.00mm M FS 15-JJ
DSCH071-M200 2.00mm M FS 15-J
DSCH071-E015 .015 inch FS 15-JJJ
DSCH071-E032 .032 inch FS 15-JJ
DSCH071-E062 .062 inch FS 15-J

DSCH071 Series Shim Set Stackups

Set Number Stackup 2.00mm 1.00mm 0.50mm 0.25mm
DSCH071-M454 4.5mm Set 1 2 1 0
DSCH071-M505 5.0mm Set 1 2 2 0
DSCH071-M506 5.0mm Set 1 2 1 2
DSCH071-M507 5.0mm Set 1 1 3 2
DSCH071-M605 6.0mm Set 2 1 2 0

DSCH071 Inch Shim Set Stackups

Set Number Stackup .062 inch .031 inch
DSCH071-E255 .250 inch Set 3 2
