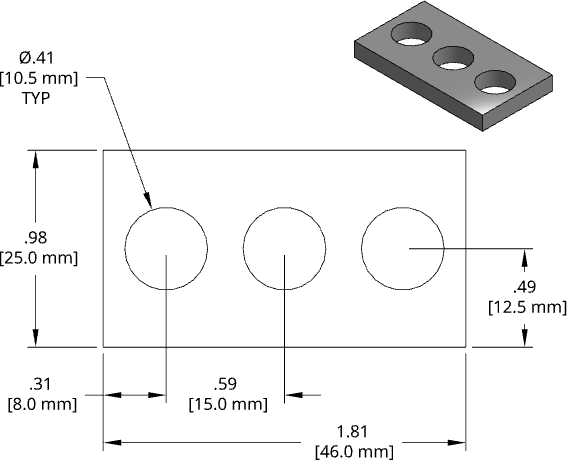

| Part Number | Thickness | Other Part Numbers |
|---|---|---|
| DSCP050-M025 | 0.25mm | ASP302 |
| DSCP050-M050 | 0.50mm | ASP305 |
| DSCP050-M100 | 1.00mm | ASP310 |
| DSCP050-M200 | 2.00mm | ASP320 |
| DSCP050-M300 | 3.00mm | ASP330, FSD 41294-51, SP1-30, 41-502-2200, 56ZF28047-101 |
| DSCP050-M320 | 3.20mm | ASP332, FSD 41294-52, SP1-32, 41-502-2201, 56ZF28047-102 |
| DSCP050-M340 | 3.40mm | ASP334, FSD 41294-53, SP1-34, 41-502-2202, 56ZF28047-103 |
| DSCP050-M360 | 3.60mm | ASP336, FSD 41294-54, SP1-36, 41-502-2203, 56ZF28047-104 |
| DSCP050-M380 | 3.80mm | ASP338, FSD 41294-55, SP1-38, 41-502-2204, 56ZF28047-105 |
| DSCP050-M400 | 4.00mm | ASP340, FSD 41294-56, SP1-40, 41-502-2205, 56ZF28047-106 |
| DSCP050-M420 | 4.20mm | ASP342, FSD 41294-57, SP1-42, 41-502-2206, 56ZF28047-107 |
| DSCP050-M440 | 4.40mm | ASP344, FSD 41294-58, SP1-44, 41-502-2207, 56ZF28047-108 |
| DSCP050-M460 | 4.60mm | ASP346, FSD 41294-59, SP1-46, 41-502-2208, 56ZF28047-109 |
| DSCP050-M480 | 4.80mm | ASP348, FSD 41294-60, SP1-48, 41-502-2209, 56ZF28047-110 |
| DSCP050-M500 | 5.00mm | ASP350, FSD 41294-61, SP1-50, 41-502-2210, 56ZF28047-111 |
| DSCP050-M520 | 5.20mm | ASP352, FSD 41294-62, SP1-52, 41-502-2211, 56ZF28047-112 |
| DSCP050-M540 | 5.40mm | ASP354, FSD 41294-63, SP1-54, 41-502-2212, 56ZF28047-113 |
| DSCP050-M560 | 5.60mm | ASP356, FSD 41294-64, SP1-56, 41-502-2213, 56ZF28047-114 |
| DSCP050-M580 | 5.80mm | ASP358, FSD 41294-65, SP1-58, 41-502-2214, 56ZF28047-115 |
| DSCP050-M600 | 6.00mm | ASP360, FSD 41294-66, SP1-60, 41-502-2215, 56ZF28047-116 |
| DSCP050-M620 | 6.20mm | ASP362, FSD 41294-67, SP1-62, 41-502-2216, 56ZF28047-117 |
| DSCP050-M640 | 6.40mm | ASP364, FSD 41294-68, SP1-64, 41-502-2217, 56ZF28047-118 |
| DSCP050-M660 | 6.60mm | ASP366, FSD 41294-69, SP1-66, 41-502-2218, 56ZF28047-119 |
| DSCP050-M680 | 6.80mm | ASP368, FSD 41294-70, SP1-68, 41-502-2219, 56ZF28047-120 |
| DSCP050-M700 | 7.00mm | ASP370, FSD 41294-71, SP1-70, 41-502-2220, 56ZF28047-121 |
|
