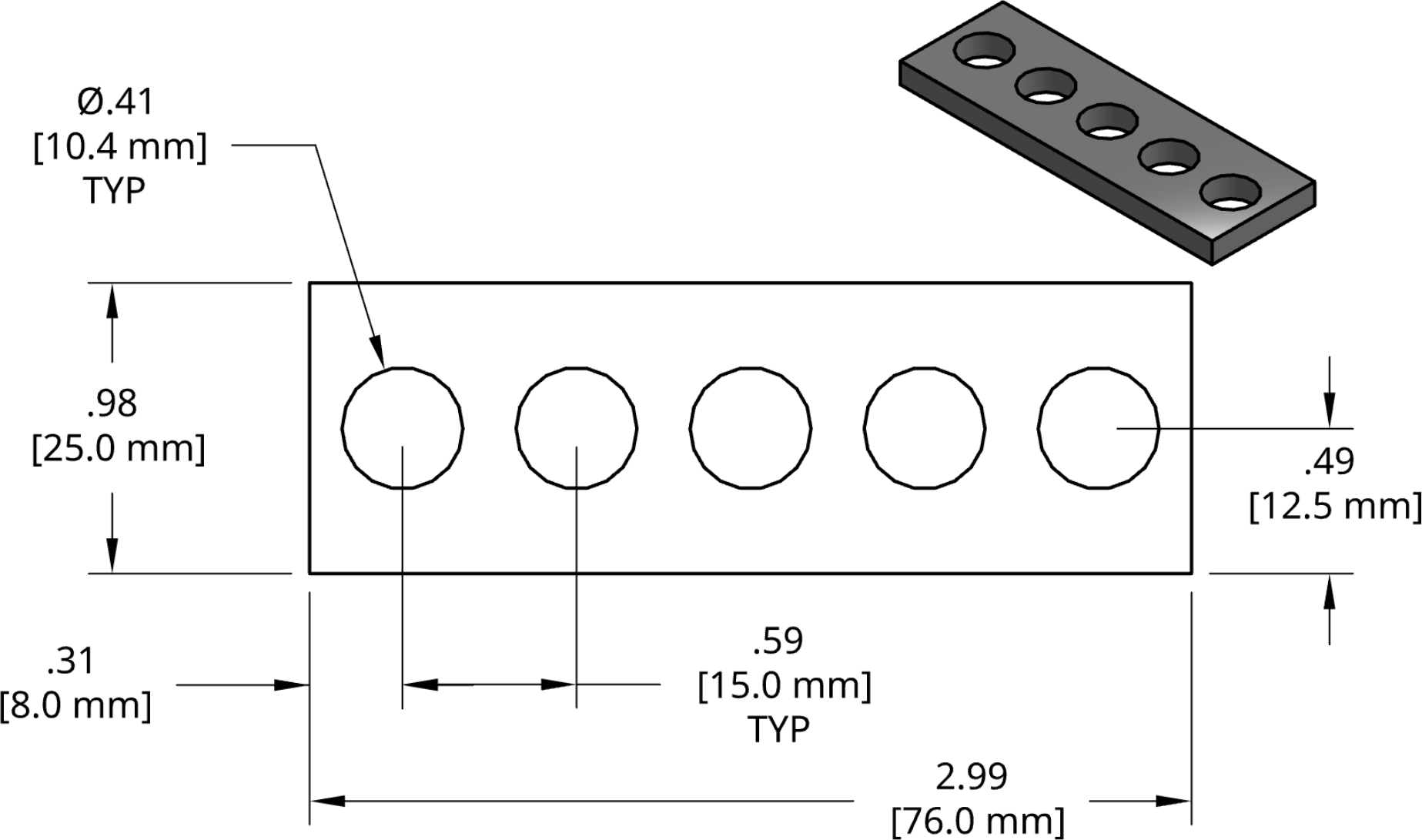

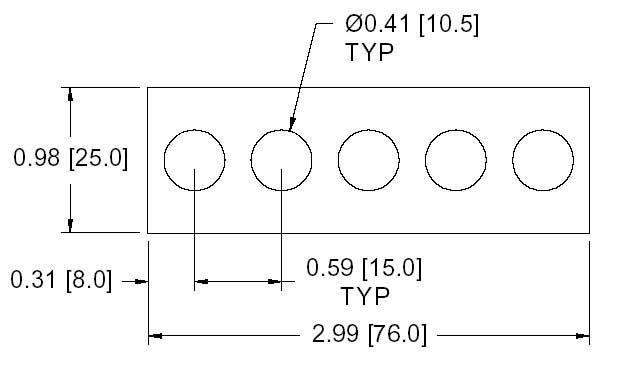

| Part Number | Thickness | Other Part Numbers |
|---|---|---|
| DSCP052-M025 | 0.25mm | ASP502, DSC502 |
| DSCP052-M052 | 0.50mm | ASP505, DSC505 |
| DSCP052-M100 | 1.00mm | ASP510, DSC510 |
| DSCP052-M200 | 2.00mm | ASP520, DSC520 |
| DSCP052-M300 | 3.00mm | ASP530, DSC530 |
| DSCP052-M320 | 3.20mm | ASP532, DSC532 |
| DSCP052-M340 | 3.40mm | ASP534, DSC534 |
| DSCP052-M360 | 3.60mm | ASP536, DSC536 |
| DSCP052-M380 | 3.80mm | ASP538, DSC538 |
| DSCP052-M400 | 4.00mm | ASP540, DSC540 |
| DSCP052-M420 | 4.20mm | ASP542, DSC542 |
| DSCP052-M440 | 4.40mm | ASP544, DSC544 |
| DSCP052-M460 | 4.60mm | ASP546, DSC546 |
| DSCP052-M480 | 4.80mm | ASP548, DSC548 |
| DSCP052-M500 | 5.00mm | ASP550, DSC550 |
| DSCP052-M520 | 5.20mm | ASP552, DSC552 |
| DSCP052-M540 | 5.40mm | ASP554, DSC554 |
| DSCP052-M560 | 5.60mm | ASP556, DSC556 |
| DSCP052-M580 | 5.80mm | ASP558, DSC558 |
| DSCP052-M600 | 6.00mm | ASP560, DSC560 |
| DSCP052-M620 | 6.20mm | ASP562, DSC562 |
| DSCP052-M640 | 6.40mm | ASP564, DSC564 |
| DSCP052-M660 | 6.60mm | ASP566, DSC566 |
| DSCP052-M680 | 6.80mm | ASP568, DSC568 |
| DSCP052-M700 | 7.00mm | ASP570, DSC570 |
|
